In industrial heating applications, precision and efficiency are non-negotiable. This is where the circulation heater plays a vital role. Known for its ability to rapidly heat liquids and gases while maintaining controlled conditions, it has become a cornerstone in sectors such as oil & gas, power generation, chemical processing, and renewable energy. In this article, we’ll provide a complete insight into circulation heaters—exploring how they work, their components, different types, applications, benefits, and best practices.

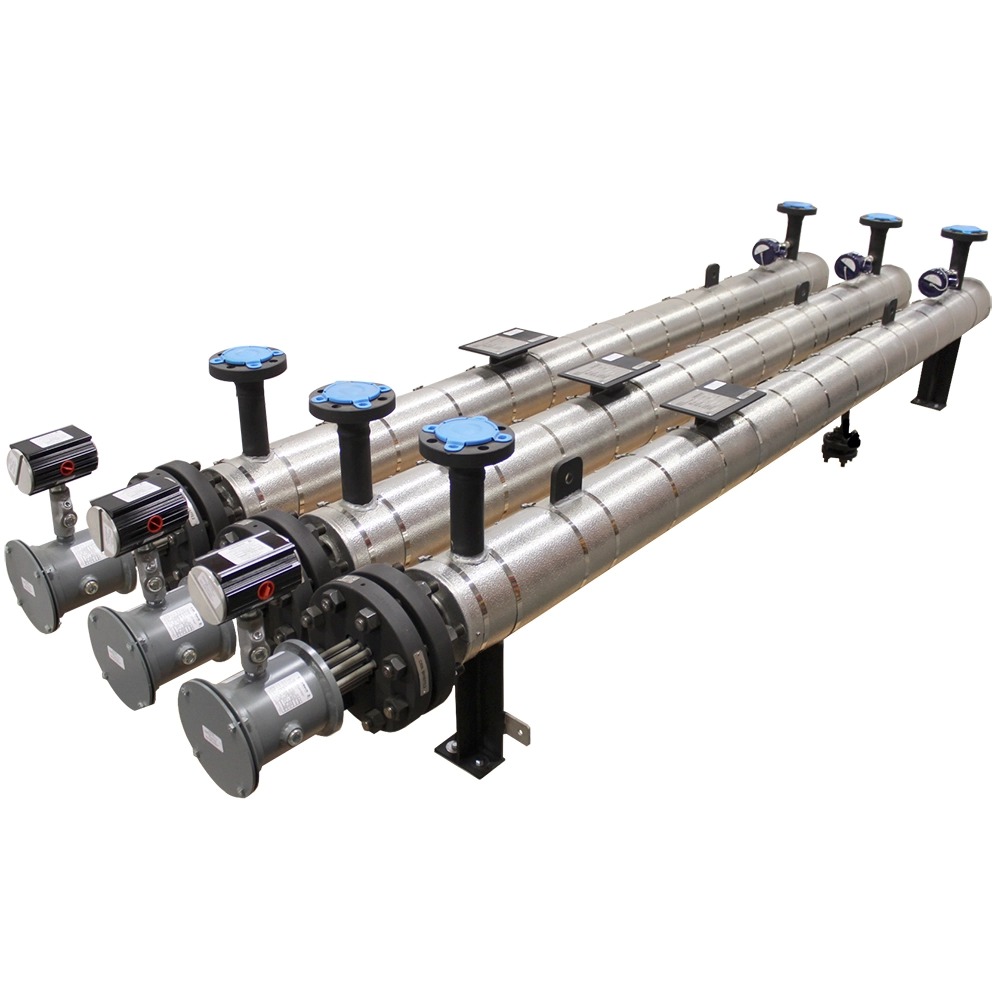

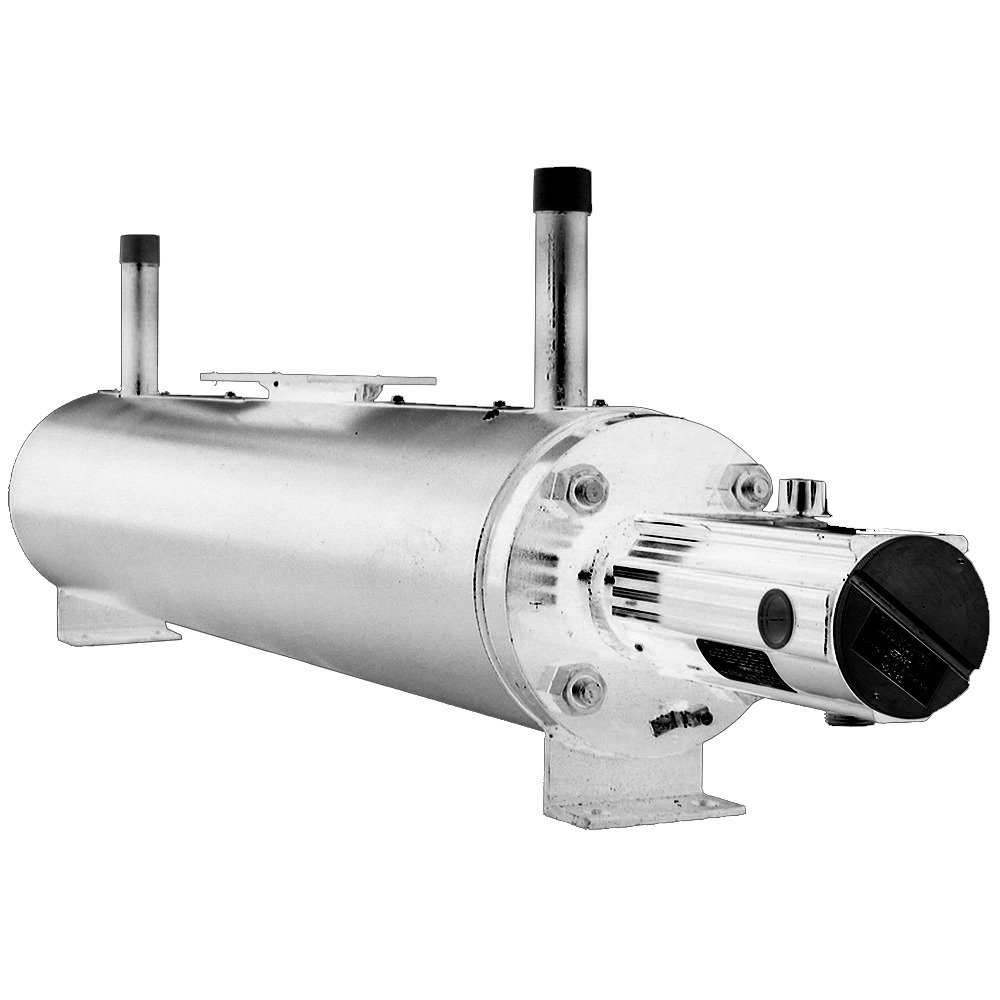

A circulation heater is a specialized heating device designed to raise the temperature of a fluid (liquid or gas) as it flows through a closed-loop system. Unlike immersion heaters, which heat a fluid in a static tank, circulation heaters are built to handle continuous movement, making them more efficient for processes requiring steady flow and precise temperature regulation. This makes them particularly useful for critical applications like fuel heating, water treatment, and hydraulic oil heating, where downtime or temperature fluctuations can compromise safety and efficiency.
The working principle of a circulation heater is straightforward but highly effective. Fluid enters the unit through an inlet nozzle, passes over or around heating elements housed inside a pressure vessel, and exits at the desired elevated temperature. Advanced control systems monitor parameters such as flow rate, outlet temperature, and pressure to prevent overheating or system failure. By integrating safety cut-offs and thermal sensors, circulation heaters can maintain consistent performance even under demanding industrial conditions.
Industries adopt circulation heaters because they address challenges like viscosity reduction in heavy oils, freezing prevention in water-based systems, and efficient heating of gases in pipelines. Beyond operational efficiency, these heaters also improve safety by minimizing the risk of fluid contamination or thermal degradation. For businesses aiming to reduce energy costs and streamline operations, circulation heaters represent an investment with long-term returns.
At the heart of a circulation heater lies the heating element, often made of materials such as stainless steel, Incoloy, or titanium depending on the fluid’s chemical compatibility. These elements convert electrical or fuel energy into heat, ensuring uniform thermal transfer. Their durability directly affects the longevity of the entire system.
The pressure vessel houses the heating elements and directs the fluid across them. Proper design ensures turbulent flow, which maximizes heat transfer while minimizing hotspots. Pressure rating is crucial here, especially for high-demand industries like petrochemicals where fluids often operate under extreme conditions.
Modern circulation heaters integrate programmable logic controllers (PLCs), temperature sensors, and safety cutoffs. These systems provide real-time monitoring, allowing operators to optimize heating efficiency while preventing operational hazards like dry firing, excessive pressure buildup, or overheating.
Electric circulation heaters are the most widely used due to their precision, ease of installation, and lower maintenance requirements. They are especially preferred in industries where cleanliness and safety are top priorities.
Fuel-fired heaters, including natural gas and oil-fired versions, are suitable for high-capacity industrial settings where electricity may not be cost-effective. They deliver significant thermal output but demand higher maintenance and stricter safety compliance.
Inline circulation heaters are designed for continuous flow processes, while immersion types are better suited for batch heating or systems where fluids remain in storage tanks. Choosing between them depends on whether your process is static or dynamic in nature.
In oil refineries and gas plants, circulation heaters are employed to preheat crude oil, reduce viscosity, and prevent blockages in pipelines. They are also crucial for natural gas dehydration and sulfur recovery processes.
Chemicals often require precise thermal control to maintain stability and reaction efficiency. Circulation heaters ensure consistent heating, thereby preventing issues like polymer degradation or inconsistent yields.
From preheating turbine lubricants to supporting biofuel production, circulation heaters are indispensable in the energy sector. Their role in renewable energy—particularly in biodiesel and ethanol production—underscores their adaptability to modern energy demands.
Circulation heaters deliver direct and efficient heat transfer, minimizing energy losses. Their compact design also reduces insulation requirements, leading to significant cost savings over time.
Unlike large boiler systems, circulation heaters can be easily integrated into existing pipelines, reducing installation downtime and footprint requirements. With advanced controllers, operators can maintain tight tolerances, ensuring that sensitive fluids remain within safe temperature ranges. This reliability minimizes risks of product wastage or damage.
The right circulation heater depends on factors such as fluid viscosity, operating pressure, temperature range, and chemical properties. A mismatch here can lead to system inefficiency or equipment failure.
Table 1: Comparison of Circulation Heater Types
| Heater Type | Best For | Efficiency | Maintenance | Cost Range |
|---|---|---|---|---|
| Electric | Clean & precise heating | High | Low | Moderate |
| Fuel-Based | Heavy-duty applications | Medium | High | High |
| Inline | Continuous flow systems | High | Moderate | Variable |
| Immersion | Batch/static heating | Medium | Low | Low |
One common error is underestimating the required watt density for the application, leading to premature element burnout. Another mistake is ignoring chemical compatibility, which can cause corrosion and leakage.
Regular inspections should include checking heating elements for scaling, monitoring insulation resistance, and verifying pressure relief systems. A quarterly preventive maintenance schedule often extends service life.
Table 2: Key Safety Standards for Circulation Heaters
| Standard/Code | Focus Area | Industry Use Case |
|---|---|---|
| ASME Section VIII | Pressure vessel design | Oil & Gas, Chemicals |
| UL & CE Marking | Electrical safety & quality | Global industrial compliance |
| OSHA Guidelines | Workplace safety practices | General industry applications |
Proper fluid filtration, maintaining correct flow rates, and regular calibration of sensors are practical steps to extend heater lifespan. These proactive measures not only prevent breakdowns but also ensure consistent heating efficiency.
A circulation heater is not merely a heating device; it is a vital enabler of industrial efficiency, safety, and sustainability. From its engineering design to applications across multiple industries, circulation heaters continue to evolve as indispensable assets. By understanding their components, types, advantages, and maintenance requirements, businesses can make smarter decisions and fully leverage their potential.
1. What fluids can be heated with a circulation heater?
Circulation heaters can heat water, oils, chemicals, natural gas, steam, and even specialty fluids, depending on the element material and vessel design.
2. Are circulation heaters energy-efficient?
Yes. They transfer heat directly to the fluid with minimal losses, especially when properly insulated and matched to the application.
3. How do I size a circulation heater correctly?
Sizing depends on flow rate, desired temperature rise, fluid properties, and operating pressure. Consulting manufacturer specifications is essential.
4. What industries benefit most from circulation heaters?
Major industries include oil & gas, power generation, chemicals, pharmaceuticals, food processing, and renewable energy.
5. How long does a circulation heater typically last?
With proper maintenance, circulation heaters often last 10–15 years, though this varies based on operating conditions and usage intensity.
