In today's industrial and domestic heating applications, immersion heaters play a crucial role in providing efficient and reliable heating solutions. Whether you're looking to heat water in a residential tank or maintain precise temperatures in an industrial process, there's an immersion heater designed for the job. But how many types of immersion heaters are there, and which one is right for your specific needs?
Understanding the various types of immersion heaters is essential for energy efficiency, safety, and cost-effectiveness. These heaters come in a wide range of designs, materials, and configurations. From pipe plug immersion heaters to solar-powered models, each type offers specific advantages tailored to different applications. This article provides a comprehensive overview of the most common types of immersion heaters, their benefits, and how to choose the right one for your needs.
Immersion heaters are electric heaters that are directly submerged in the liquid or gas they are intended to heat. They are widely used because of their ability to provide heat directly to the medium, maximizing energy efficiency. Here is a breakdown of the most common types:
Pipe plug immersion heaters are typically compact and screw directly into the threaded opening of a container or tank. They usually come in standard sizes such as 1", 1.25", or 2" diameter plugs.
Key features:
Ideal for small tanks and reservoirs.
Easy to install and replace.
Often used for heating oils, water, and mild chemicals.
Applications: Laboratory equipment, hydraulic oils, and small water tanks.
Quartz immersion heaters are designed for applications requiring resistance to aggressive chemicals.
Key features:
Constructed using high-purity quartz for excellent chemical resistance.
Ideal for corrosive liquids like acids.
Provides non-metallic heating without contaminating the medium.
Applications: Semiconductor manufacturing, electroplating, and chemical processing.

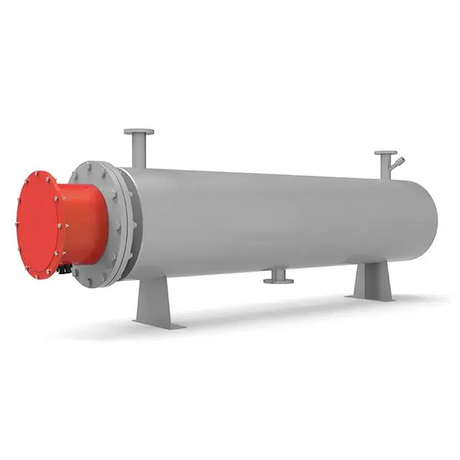

Circulation heaters are closed-loop systems where the liquid passes through a heated chamber before being returned to the tank.
Key features:
Highly efficient, offering precise temperature control.
Suitable for high-pressure applications.
Can be customized with various materials like stainless steel, Incoloy, and titanium.
Applications: Oil heating, water preheating, and gas heating.
Over-the-side immersion heaters are designed to be mounted on the side of tanks, with the heating element submerged in the liquid.
Key features:
Easy to install without tank modification.
Ideal for temporary or mobile heating needs.
Can be removed without draining the tank.
Applications: Cleaning tanks, plating baths, and emergency heating.
Flanged immersion heaters are bolted onto the tank using a flange and are used in high-volume industrial heating.
Key features:
Highly durable and robust.
Ideal for large tanks and high-wattage requirements.
Available in custom flange sizes and materials.
Applications: Petrochemical, water treatment, and power generation.
Screw plug immersion heaters are similar to pipe plug heaters but often feature more complex heating elements and control systems.
Key features:
Screw directly into the tank wall.
Offer thermal insulation and temperature control options.
Can be used for both water and oil.
Applications: Boilers, oil reservoirs, and industrial fluid tanks.
L-shaped immersion heaters are designed for heating applications where vertical space is limited.
Key features:
Compact design fits in tight spaces.
Can be mounted horizontally or vertically.
Available in both over-the-side and flanged styles.
Applications: Storage tanks, IBC totes, and chemical baths.
Tank heating elements are designed to maintain or raise the temperature of stored liquids in large tanks.
Key features:
Can be installed internally or externally.
Compatible with insulation and thermostatic controls.
Often used in combination with sensors and automation systems.
Applications: Industrial tanks, food processing, and water storage.
Solar-powered immersion heaters use photovoltaic panels to generate electricity for the heating element.
Key features:
Environmentally friendly and energy-efficient.
Ideal for off-grid and remote locations.
Reduces electricity bills and carbon footprint.
Applications: Residential water heating, agriculture, and eco-friendly industries.
Drywell immersion heaters are unique in that the heating element is housed in a sleeve, which prevents direct contact with the liquid.
Key features:
Allows maintenance without draining the tank.
Reduces risk of contamination.
Ideal for sensitive or hazardous liquids.
Applications: Pharmaceuticals, food-grade applications, and HVAC systems.
Immersion heaters provide direct heat transfer to the liquid medium, minimizing energy loss. Their design ensures that nearly 100% of the electrical energy is converted into heat, making them more efficient than traditional heating systems.
Data Point: According to a 2024 study by EnergyTech Review, immersion heaters can achieve up to 98% thermal efficiency in properly insulated tanks.
Because most immersion heaters are built with durable materials like stainless steel, Incoloy, and titanium, they require very little maintenance. Drywell heaters offer the added benefit of being serviceable without draining the tank.
From over-the-side to solar-powered models, the variety of immersion heaters means they can be adapted for nearly any application. Their modular design allows for use in residential, commercial, and industrial settings.
Since the heating element is in direct contact with the liquid, immersion heaters provide fast and consistent heat. This rapid heat transfer is essential in industries that require quick temperature adjustments.
Example: In industrial cleaning applications, circulation heaters can raise water temperature from room temperature to 80°C in less than 15 minutes.
Advanced immersion heaters are often equipped with thermostats and digital controllers, allowing for precise temperature regulation. This is particularly important in chemical processing or food manufacturing, where temperature consistency is key.
Most immersion heaters are plug-and-play devices. For example, screw plug immersion heaters and pipe plug heaters can be installed with standard tools and minimal downtime.
Modern immersion heating systems come with features such as over-temperature protection, automatic shut-off, and leak detection. Drywell heaters are particularly safe for sensitive applications.
Solar-powered immersion heaters are gaining popularity as industries move towards sustainable energy solutions. These systems help reduce the carbon footprint while maintaining performance.
Statistical Insight: Solar immersion systems can reduce energy consumption by up to 60% annually, according to the 2023 Renewable Energy Report.
| Type | Best Use Case | Material Options | Installation Style | Key Advantage |
|---|---|---|---|---|
| Pipe Plug | Small tanks, oils | Stainless Steel, Incoloy | Screw-in | Compact and simple |
| Quartz | Corrosive liquids | Quartz | Submersible | Chemical resistance |
| Circulation | Continuous-flow systems | Steel, Incoloy, Titanium | Inline piping | High efficiency and control |
| Over-the-Side | Temporary setups | Copper, Steel, Teflon | Tank-mounted | Easy to install and remove |
| Flanged | Large industrial tanks | Steel, Incoloy, Titanium | Flanged-mount | Durable and high-watt |
| Screw Plug | Medium tanks | Stainless Steel, Copper | Screw-in | Enhanced control features |
| L-Shaped | Space-constrained locations | Steel, Incoloy | Side or bottom mount | Fits tight spaces |
| Tank Heating | Large storage tanks | Steel, Incoloy | Internal or external | Long-term heating solution |
| Solar Powered | Off-grid or eco-friendly environments | Varies | PV + element | Renewable and cost-saving |
| Drywell | Hazardous/sensitive applications | Steel, Incoloy | Dry sleeve | Easy maintenance |
In the ever-evolving landscape of heating technology, immersion heaters stand out for their efficiency, versatility, and ease of use. From the robust flanged immersion heaters used in industrial tanks to the eco-conscious solar-powered immersion heaters, there's a heater for every application.
Understanding the different types of immersion heaters—such as pipe plug, quartz immersion heaters, L-shaped, and drywell—is the first step in selecting the ideal solution for your heating needs. Whether you're aiming for rapid heat transfer, temperature precision, or environmental sustainability, immersion heaters provide a reliable and effective answer.
As industries continue to innovate and demand more energy-efficient solutions, expect immersion heaters to remain at the forefront of thermal technology. Their adaptability, combined with modern features and eco-friendly options, makes them indispensable across sectors.
Q1: What is the most efficient type of immersion heater?
A: Circulation heaters are considered the most efficient due to their closed-loop system and precise temperature controls.
Q2: Are solar-powered immersion heaters reliable?
A: Yes, with advancements in solar panel technology, solar-powered immersion heaters are now highly reliable and cost-effective for long-term use.
Q3: Can I use immersion heaters for oil heating?
A: Absolutely. Pipe plug and screw plug immersion heaters are commonly used for oil heating applications in both industrial and residential settings.
Q4: What materials are best for corrosive environments?
A: Quartz immersion heaters and units made from titanium are excellent for corrosive environments.
Q5: Do immersion heaters require regular maintenance?
A: Most immersion heaters are low maintenance, especially drywell heaters, which can be serviced without draining the tank.
Q6: How do I choose the right immersion heater?
A: Consider the application, tank size, liquid type, required temperature, and installation preferences. Use comparison tables and consult with a heating specialist if necessary.
Q7: Are immersion heaters safe?
A: Yes, modern immersion heaters come with safety features such as temperature cutoffs, leak detection, and automatic shut-off systems.
