Views: 211 Author: Site Editor Publish Time: 2025-09-25 Origin: Site
Industrial heating is the backbone of many critical processes—ranging from steam generation in power plants, controlled air heating in food processing, to safe handling of gases and corrosive fluids in chemical facilities. Traditional heating methods often fall short when it comes to precision, energy efficiency, and safety. This is where the circulation heater becomes indispensable. Designed to heat a fluid or gas as it circulates through a closed-loop system, these heaters deliver highly efficient, controlled, and customizable heating solutions.

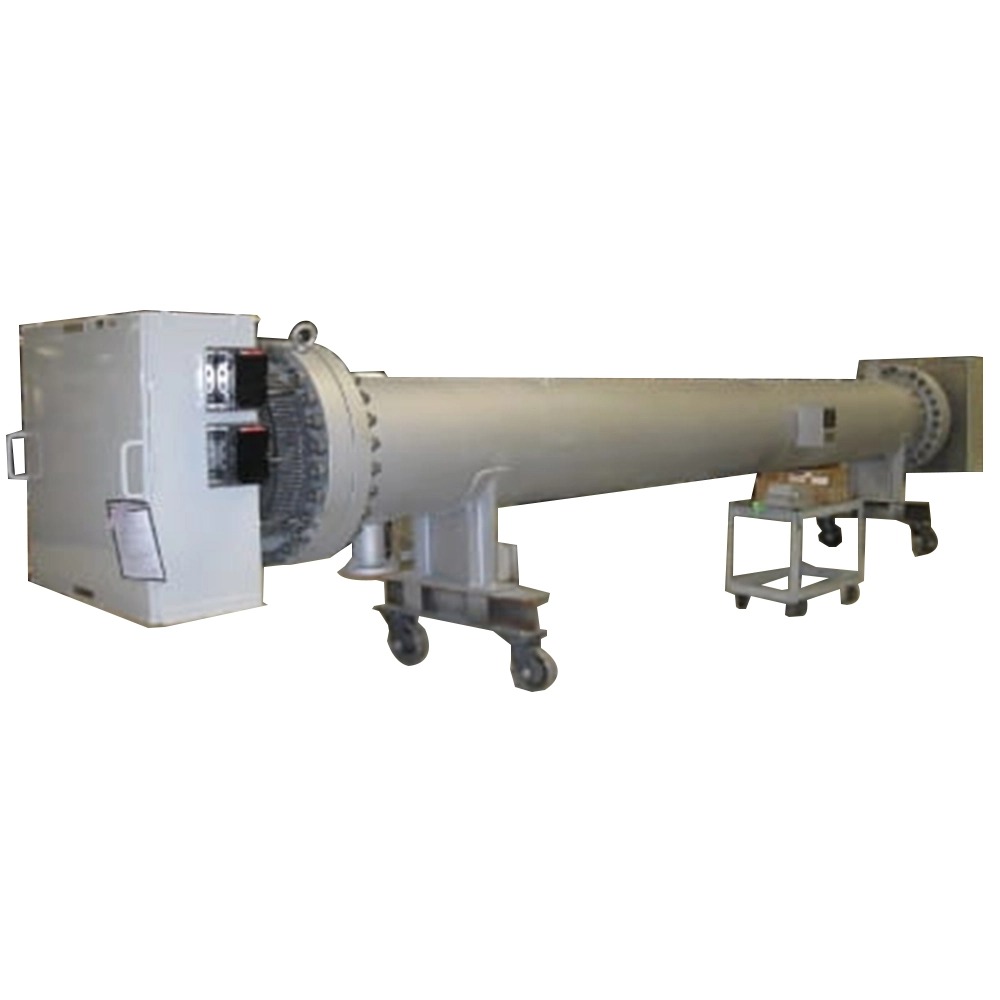

A circulation heater, sometimes called an inline heater, is an electric heating system that forces a liquid or gas through a chamber containing heating elements. The medium absorbs heat as it passes over these elements, emerging at a controlled and uniform temperature. Unlike immersion heaters, which directly heat stored fluids, circulation heaters excel in continuous flow applications, making them ideal for dynamic industrial processes.
Most circulation heaters include a pressure vessel, electric heating elements, insulation, inlet/outlet flanges, and temperature sensors. The fluid or gas enters the heater chamber, flows across heating elements, and exits at the desired temperature. Advanced models incorporate thermostats and digital controllers to fine-tune performance and prevent overheating.
Efficiency: Heat is applied directly to the medium in a controlled environment, reducing energy loss.
Compact Design: Inline installation requires less floor space than bulky boilers or furnaces.
Safety: No open flames, making them safer for combustible gases.
Versatility: Suitable for a wide range of media—from clean air to corrosive chemicals.
Industries such as pharmaceuticals, textiles, and food processing rely heavily on steam for sterilization, drying, and controlled reactions. Even minor fluctuations in steam temperature or pressure can compromise product quality or disrupt production schedules.
Circulation heaters allow precise regulation of steam temperature, ensuring consistent output. Unlike large steam boilers, they can be configured for localized or auxiliary steam generation, saving energy and space. Their compactness also supports faster heat-up times, which reduces downtime in cyclic operations.
While effective, steam heating systems can face scaling and mineral deposit buildup. Best practices include selecting stainless steel vessels, incorporating automated pressure relief systems, and scheduling routine descaling to maintain efficiency.
Circulation heaters are widely used to heat natural gas, hydrogen, nitrogen, and CO₂ in industries such as oil and gas, aerospace, and energy. Preheating gases ensures combustion efficiency, prevents condensation in pipelines, and stabilizes pressure.
Gas heating requires careful attention to pressure, leak prevention, and ignition safety. Circulation heaters excel because they use electric elements instead of open flames, minimizing explosion risks. Additionally, precise temperature control prevents over-expansion of gases, protecting downstream equipment.
| Feature | Circulation Heater | Direct Flame Heating |
|---|---|---|
| Safety | High (no open flame) | Moderate (fire hazard) |
| Energy Efficiency | 90–95% | 60–70% |
| Temperature Control | Highly precise | Less precise |
| Maintenance Requirements | Low | High |
Heated air is used for paint drying, cleanroom ventilation, food dehydration, and HVAC systems in factories. Maintaining stable airflow temperature ensures product consistency and worker comfort.
Unlike gas-fired heaters, circulation heaters provide contaminant-free heated air—essential for industries such as pharmaceuticals and semiconductors. They can be installed directly in duct systems, ensuring minimal heat loss and even temperature distribution.
Insulated heater chambers, coupled with programmable controls, reduce wasted energy by adjusting output to real-time demand. In large-scale operations, this can reduce energy costs by 20–30%.
Industries handling acids, wastewater, or aggressive chemicals face unique challenges: equipment corrosion, leaks, and frequent downtime. Traditional metal heaters deteriorate quickly under such conditions.
Choosing the right materials is crucial. Options include Incoloy, Hastelloy, and Teflon-coated elements, each tailored for different chemical resistances. For instance, Incoloy resists oxidation at high temperatures, while Teflon coatings protect against aggressive acids.
Protective linings and sacrificial anodes can significantly extend heater lifespan. Regular monitoring of element wear and adopting closed-loop systems further minimize risk.
When selecting a heater, engineers must evaluate:
Desired temperature range
Flow rate of the medium
Fluid or gas composition
Pressure constraints
| Application | Key Challenge | Best Material/Design | Efficiency Focus |
|---|---|---|---|
| Steam | Scaling & pressure | Stainless steel, descaling system | Rapid heat-up |
| Gas | Safety & pressure | Flame-free electric system | Precision control |
| Air | Contamination | Clean electric inline heater | Energy reduction |
| Corrosive | Chemical attack | Hastelloy, Teflon-coated | Long lifespan |
One frequent mistake is underestimating the corrosive nature of the medium. Others include neglecting flow velocity or choosing undersized systems that cannot meet load demand. Partnering with experienced heater manufacturers helps mitigate these risks.
By pairing circulation heaters with sensors and automated controls, companies can reduce unnecessary heating cycles, lowering energy bills significantly. Modern circulation heaters integrate with industrial control systems, allowing predictive maintenance and adaptive heating schedules. This prevents failures and reduces repair costs.
Circulation heaters are transforming how industries handle heating of steam, gas, air, and corrosive fluids. By offering precision, safety, and durability, they outperform traditional systems and deliver measurable cost savings. For businesses seeking efficiency and reliability in high-stakes environments, choosing the right circulation heater design is not just an option—it’s a necessity.
1. What industries benefit most from circulation heaters?
Industries such as oil & gas, food processing, pharmaceuticals, power generation, and chemical manufacturing rely heavily on circulation heaters due to their efficiency and safety.
2. How long does a circulation heater typically last in corrosive conditions?
With proper material selection and coatings, heaters can last 5–10 years, even in aggressive chemical environments.
3. What’s the difference between inline circulation heaters and immersion heaters?
Immersion heaters heat static fluid in a tank, while circulation heaters heat a continuously flowing medium.
4. Can circulation heaters be customized for multi-media heating?
Yes, manufacturers can design multi-stage systems for steam, gas, and corrosive fluids within the same facility.
5. Are circulation heaters suitable for high-pressure steam systems?
Absolutely. With reinforced vessels and pressure-rated designs, they can handle high-pressure steam safely.
6. What maintenance is required to extend circulation heater life?
Regular inspections, scaling removal, monitoring of coatings, and automated shutdown features all help extend service life.
