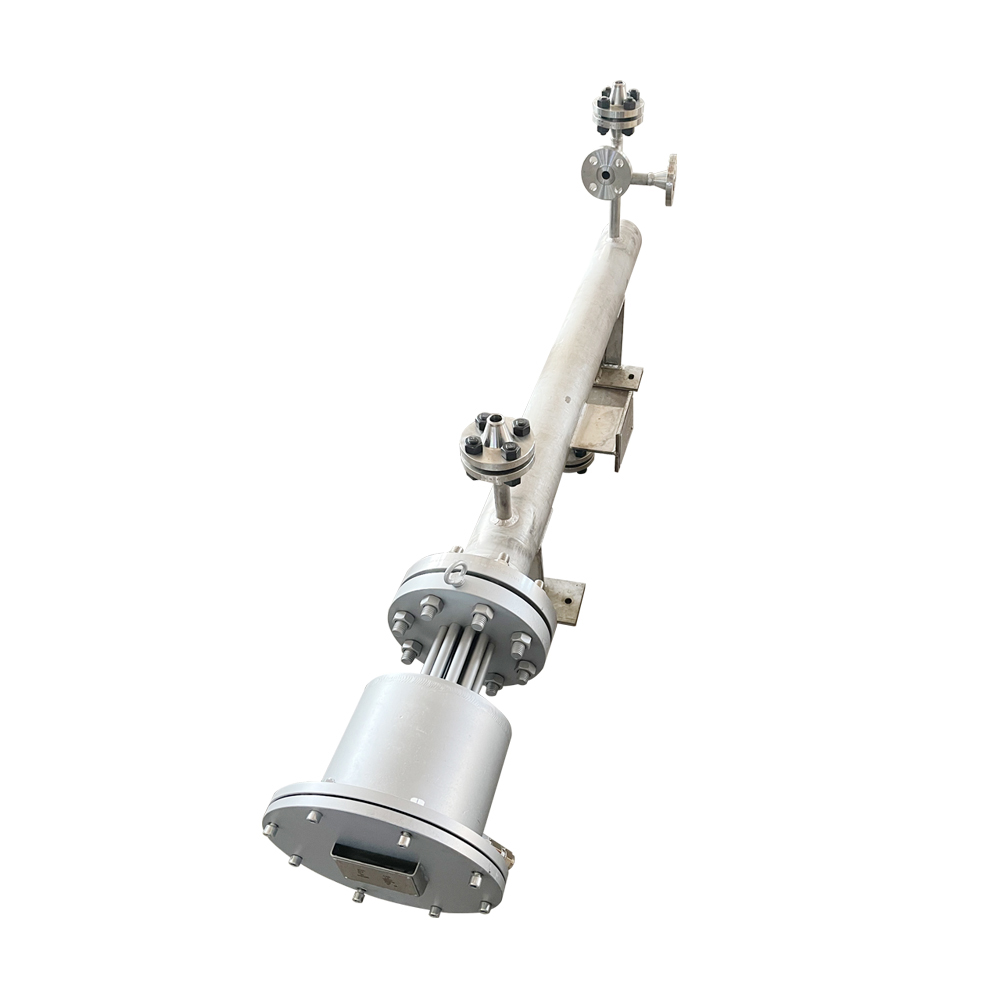

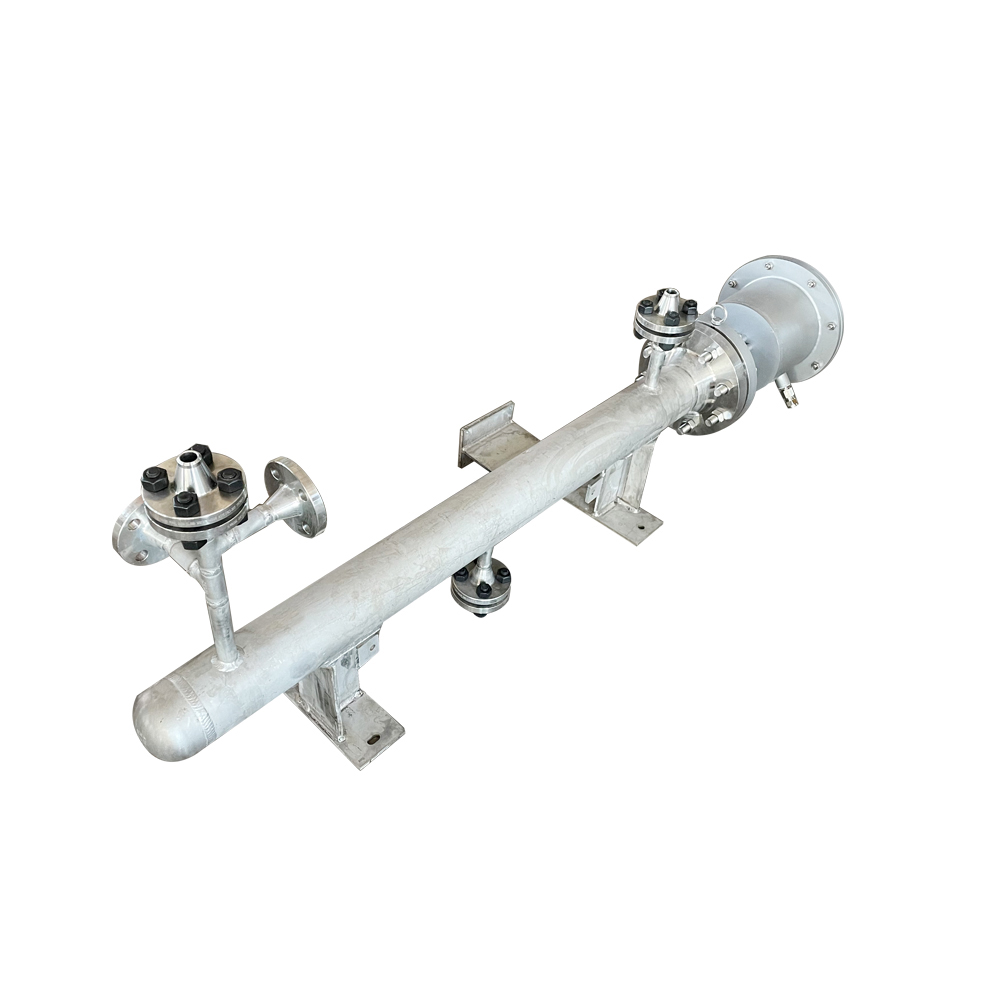

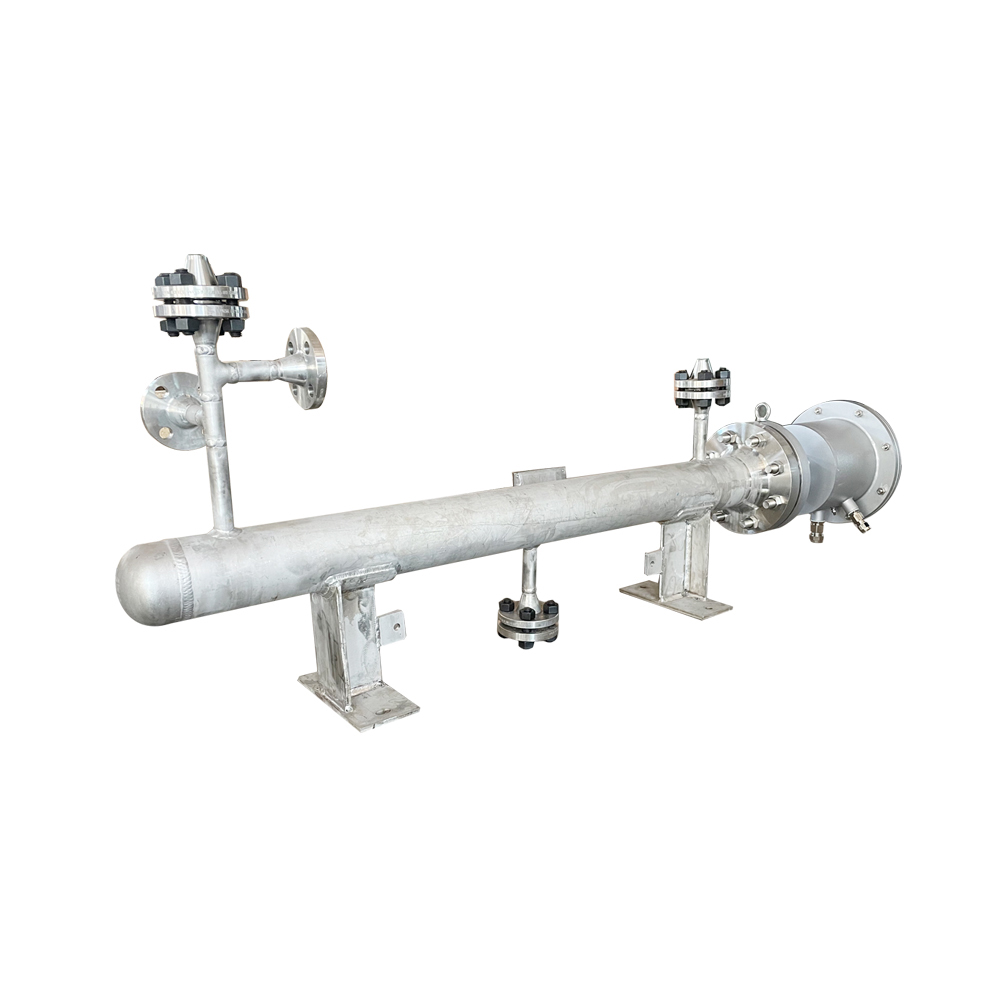

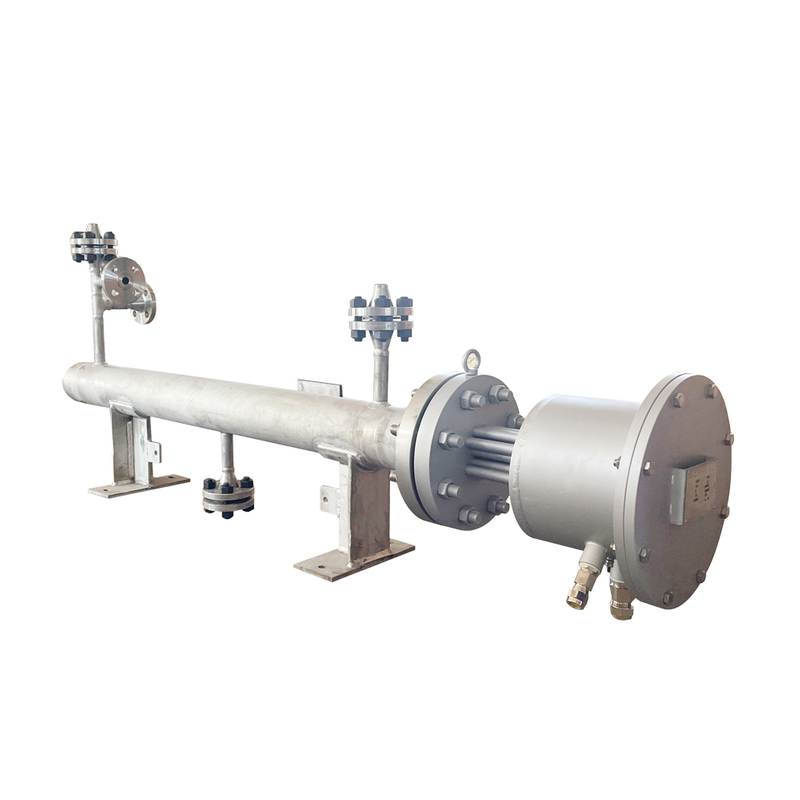

4150V 10KW Explosion proof industrial electric heater

Electric industrial heaters are used in a variety of processes where the temperature of an object or process needs to be increased. For example, lubricating oil need to be warmed before it is fed to a machine, or, a pipe might required the use of a tape heater to prevent it from freezing in the cold.

Availability:

Quantity:



Inquire Add to Basket

Product Description

415V 10KW Industrial electric heater flange type immersive heater

Technical specification:

Rated power: 10kw
Rated voltage: 415V AC 50HZ 3P
Heating medium: Hydrocarbon/oil
Flow rater: 158.6kg/h
Operating Pressure: 10.0 Barg
Design Pressure: 16 Barg
Operating Temperature: Inlet 60c, Outlet 150c
Design Temperature: 0/300c
Shell material: SS316L
Heating element material: SS316L
Flange material: A182 Gr.F316L
Support saddle material: SS316L
Bolts/nuts: SA-193 B7/SA-194 2H
Junction box material: SS316L/EXDIIAT3
Instrument wiring box material: SS316L/EXDIIAT3
Electric heating tube filling material: MgO
Resistance wire material: Ni80Cr20
Degree of protection: IP66
Heating element number: 6 root, the power density is 2.3w/cm2
Corrosion allowance: 3mm
Pressure loss across the heater is less than 1kPa
Equipment shall be designed and manufactured to ASME VIII DIV.1, NOT PROVIDED ASME "U"Stamp
empty weight: 130kg
