Views: 0 Author: Site Editor Publish Time: 2026-04-17 Origin: Site
Plant engineers and facility managers face immense pressure today. You must balance precise temperature control requirements against strict decarbonization mandates and energy efficiency targets. Finding heating equipment capable of meeting these dual demands remains a persistent procurement challenge. This is where the industrial immersion heater excels. It serves as a highly efficient, direct-heat transfer solution. In properly insulated, closed systems, this equipment routinely yields nearly 100 percent thermal efficiency. This article provides a comprehensive technical evaluation guide for your facility infrastructure. We will detail various heater configurations, explore core engineering criteria, and highlight specific industry applications. You will learn exactly how to match watt density to your fluid properties. We will also show you how to avoid common operational pitfalls. By understanding these key components, you can upgrade your thermal systems safely and effectively.
Efficiency: Direct submerged heating yields near-net-zero heat loss, outperforming traditional steam or convective boiler networks.
Specification Variables: Proper selection relies heavily on balancing watt density with the fluid’s specific heat capacity to prevent media degradation.
Form Factors: Designs range from heavy-duty flanged units for permanent vats to over-the-side models for portable, multi-tank applications.
Risk Mitigation: The majority of operational failures stem from preventable scaling and dry-firing, requiring proactive maintenance protocols.
The physical heating process is straightforward yet incredibly effective. Electrical heating elements are directly submerged in a liquid medium. When operators apply power, electrical resistance generates intense heat within the elements. Because the fluid completely surrounds these hot surfaces, the medium absorbs the energy immediately. This mechanism transfers virtually 100 percent of the generated heat directly into the liquid. It minimizes ambient heat loss and provides highly accurate temperature control. In some applications, protective sleeves isolate the physical elements, but the thermodynamic principle of total energy transfer remains intact.
Many professionals occasionally confuse true immersion heaters with suction heaters. You must distinguish between the two when specifying facility equipment. Industrial immersion heaters are designed to heat and maintain whole batches of static bulk materials. They sit inside a large tank and keep the entire fluid volume at a consistent target temperature. Conversely, suction heaters operate dynamically. They are designed to heat localized fluids strictly as pumps draw the fluid out of a tank. You use suction models to instantly lower fluid viscosity at an exit point. You use immersion models to maintain long-term bulk temperature stability.
Thermal systems typically utilize one of two physical contact methods: direct or indirect heating. Direct heating maximizes thermal efficiency. The bare sheath of the heating element touches the fluid, transferring energy instantly. However, direct contact presents risks for highly corrosive chemical baths or ultra-pure pharmaceutical liquids. In these scenarios, indirect heating provides the superior solution. Engineers isolate the heating element inside a sealed pipe well or a heavy-duty sleeve. The element heats the protective sleeve via radiant heat. The sleeve then transfers that heat to the fluid via convection. This method prevents cross-contamination and allows maintenance teams to extract the heating core without emptying the entire vat.
Before selecting a unit, you should compare the distinct advantages of various form factors. The chart below summarizes the primary configurations available on the market.
Configuration | Best For | Key Evaluation Note |
|---|---|---|
Flanged | Heavy-duty, high-capacity industrial tanks. | Highly durable. Often requires tank draining for maintenance unless using dry-well designs. |
Screw Plug | Smaller reservoirs and precision operations. | Fast installation. Limited in maximum wattage output for massive industrial loads. |
Over-the-Side | Retrofits, temporary setups, and multi-vessel use. | Easily removed for cleaning. Leaves the fluid surface partially exposed to ambient air. |
Circulation | Closed-loop process fluids (oil, water, solvents). | Packs high watt densities into compact tubes. Continuously modifies viscosity during flow. |
Facilities rely on flanged units for heavy-duty, high-capacity heating requirements. Manufacturers weld tubular heating elements to a robust metal flange. Installers then bolt this flange to a matching nozzle welded onto the tank wall. These highly durable units easily manage extreme industrial temperatures, sometimes exceeding 1200°F in specialized applications.
Common Mistake: Failing to plan for maintenance downtime. Standard flanged heaters require you to completely drain the tank before removal. If draining is unfeasible, you must specify open-coil or interlocking ceramic dry-well designs during the initial procurement phase.
Screw plug heaters excel in smaller reservoirs and precision heating operations. They typically utilize industry-standard NPT pipe thread fittings ranging from ½” to 2 ½”. Installers simply thread the heater directly into a tapped opening in the tank wall. They are exceptionally fast to install and feature a very compact footprint. However, their physical size limits their overall wattage output. They cannot handle the heavy industrial loads required for massive petroleum holding tanks.
This design offers maximum portability and ease of installation. Over-the-side heaters hang down into the tank from the upper rim. They are the ideal choice for facility retrofits, temporary heating setups, and multi-vessel operations like degreasing or coking solutions. Because they enter from the top, you can easily remove them for cleaning without disturbing existing tank infrastructure. The primary drawback is that the top of the vessel must remain partially open or specially modified, which can expose the fluid surface to ambient air.

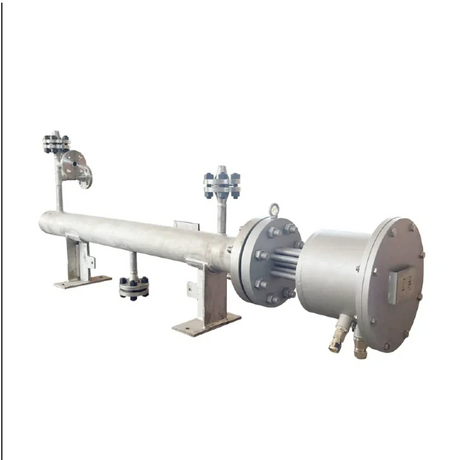

Circulation heaters manage flowing liquids rather than static tanks. They are best suited for closed-loop process fluids like oil, water, or chemical solvents. This configuration encloses a flanged immersion heater inside a heavily insulated pressure vessel or tube body. As the fluid flows through the piping system, it passes over the heating elements. Circulation heaters pack incredibly high watt densities into compact tube bundles. They continuously modify fluid viscosity on demand as the medium moves through the industrial process.
Watt density represents the heat applied per square inch of the element's surface area. It stands as the single most critical metric in thermal engineering. High watt densities push heat into the fluid rapidly, but they also create extreme surface temperatures. You must match the heater's watt density perfectly to the fluid's chemical tolerance. Applying high watt density to a thick, viscous fluid accelerates localized degradation. The fluid burns onto the element in a process known as coking. Coking ruins the fluid batch and insulates the heater, leading to rapid element burnout.
Heating elements require protective sheathing to survive harsh environments. You must outline the precise chemical realities of your process to select the correct material.
Titanium: Essential for highly acidic, harsh chemical baths and aggressive plating solutions.
Incoloy: Offers excellent high-temperature oxidation resistance. Operators frequently use it for general corrosive resistance and high-heat air applications.
Stainless Steel: The industry standard for food-grade water, mild alkaline solutions, and general wash systems.
Copper: Highly conductive and cost-effective, but strictly limited to clean water and freeze protection environments.
Chemical composition drastically alters system heat-up times. You cannot size a heater based on volume alone. Water possesses a high specific heat capacity, meaning it absorbs thermal energy quickly and efficiently. Conversely, viscous petroleum products or dense wastewater slurries resist rapid heat transfer. They require significantly more time and carefully distributed low-watt-density energy to reach target temperatures safely. Engineers must calculate the precise thermal conductivity of the specific medium before finalizing the kilowatt requirements.
The mounting location determines whether your vessel achieves uniform thermal distribution or suffers from damaging cold spots. Heat naturally rises. Therefore, placing heating elements near the bottom of a tank establishes optimal convective currents. The heated fluid rises, pushing colder fluid down toward the elements. If facility constraints force you to mount the heater higher on the side wall, the fluid below the element will remain perpetually cold. You will need external mechanical agitators or specific baffle designs to force proper circulation.
Food, Beverage, and Pharmaceuticals
These highly regulated sectors demand absolute precision and cleanliness. Facilities use specialized heaters for pasteurization, sterilization, and precision ingredient dissolution. The baseline parameters typically operate in the 20°C to 150°C range. Any equipment used here must meet strict sanitary compliance requirements, such as FDA or 3-A sanitary standards. Equipment designs often feature polished stainless steel sheaths to prevent bacterial adhesion.
Petrochemical and Metallurgy
Heavy industry relies on intense, sustained heat. Typical use cases include viscosity reduction for heavy raw oils, off-gassing prevention, and bulk metal heat treatment. The baseline parameters push the physical limits of the equipment. High-temperature demands regularly range from 100°C to 800°C and beyond. Furthermore, because these environments process volatile chemicals, the heaters often require explosion-proof terminal enclosures (such as NEMA 7 ratings) to ensure absolute facility safety.
Heavy Industrial and Infrastructure
Civic and macro-industrial infrastructure projects utilize these systems for critical stability. Nuclear reactors use robust immersion elements to precisely stabilize water pressure within pressurizer units. Construction sectors deploy them for accelerated cement curing in cold environments. Additionally, municipal wastewater treatment plants rely heavily on large-scale flanged units for winterization and freeze protection, ensuring biological breakdown processes do not stall during winter months.
Global regulatory agencies continue to tighten environmental compliance rules. Upgrading your thermal infrastructure helps you stay ahead of these mandates. Because immersion systems operate on 100 percent electric power, they eliminate localized emissions entirely. They remove the open flames, combustible fuel storage risks, and distinct carbon footprints associated with legacy fossil-fuel burners. Transitioning to electrification simplifies environmental reporting and future-proofs the facility against upcoming carbon tax penalties.
Maintaining optimal temperature ranges with direct fluid contact fundamentally changes facility energy consumption. Leading industry consensus, aligning with prominent ASHRAE and ASME benchmarks, demonstrates clear efficiency gains. Direct submerged electric heating often reduces energy waste by 15 to 25 percent compared to aging steam boiler networks. Traditional steam systems suffer continuous energy loss through uninsulated piping runs, faulty steam traps, and exhaust flues. Direct electric heating puts every generated joule exactly where you need it: directly into the process fluid.
Real estate inside an industrial plant holds immense value. Traditional heat exchange networks require sprawling, maintenance-heavy external boiler rooms. They rely on complex webs of external piping, valves, and return lines. Electric immersion heating removes this need completely. It condenses the heating process directly into the process vessel itself. This space-saving advantage frees up critical floor space for production expansion and drastically simplifies the overall facility floor plan.
Scaling stands as the primary enemy of efficient heat transfer. Over time, minerals present in water or process fluids precipitate out and coat the heating elements. This hardened scale acts as a powerful thermal insulator. It traps the generated energy inside the sheath. When elements are insulated by scale, internal temperatures spike dangerously, eventually melting the internal resistance wire and causing complete element failure.
Best Practice: Establish a routine descaling schedule. Proactive scale removal can rapidly recover up to 20 percent in lost operational efficiency and double the functional lifespan of the unit.
You face a critical risk if you operate the heater when fluid levels drop below the heating element. Engineers call this "dry-firing." Electric elements designed for liquid immersion dissipate heat very rapidly into fluids. Air cannot absorb heat at the same rate. If the element is exposed to air while powered, it overheats in a matter of minutes, leading to immediate burnout and potential fire hazards.
Best Practice: Always interlock the heater's control panel with automated float switches or ultrasonic liquid level sensors. These safety devices instantly cut power if the fluid drops below safe operational thresholds.
The connection points where facility power meets the heating elements require constant vigilance. Operational vibration from nearby pumps or agitators can gradually loosen terminal connections. Loose wiring creates electrical arcing and intense localized heat. Furthermore, ambient heat from the tank can degrade wire insulation over time.
Best Practice: Advise maintenance crews to isolate wiring enclosures from extreme tank temperatures using standoff housings. Routinely check and retorque all electrical connections to prevent terminal meltdowns.
Sourcing the right thermal equipment is a rigorous engineering task. Your decision matrix requires carefully balancing physical tank constraints against harsh fluid chemistry and strict watt density limits. You must match the sheath material to the corrosive reality of the medium while ensuring the element placement promotes natural convective flow. Overlooking any of these variables invites premature equipment failure. To specify a custom-configured solution and accurately audit your current heat loss, discuss your immersion heater requirements with a qualified thermal engineer today.
A: You must match the watt density to your fluid’s maximum allowable temperature and viscosity. Thin fluids like clean water absorb heat rapidly, tolerating high watt densities safely. Viscous fluids like heavy oils require much lower watt densities. Applying excessive watt density causes thick fluids to burn and coke on the element, degrading the fluid and destroying the heater.
A: Yes, if you select the correct configuration. Engineers use indirect heating sleeves, dry-well designs, or over-the-side configurations for these scenarios. The heating element slides inside a sealed pipe permanently welded to the tank. When maintenance is required, you simply slide the element out of the dry well without releasing any fluid.
A: Lifespan is largely dictated by your maintenance frequency and operational environment. The primary factors controlling longevity are routine mineral scale removal and preventing dry-fires. Allowing scale to accumulate insulates the element and forces internal temperatures to spike, which rapidly accelerates failure. With clean fluids and proper level sensors, units can operate for decades.
A: They offer superior long-term operational efficiency. While regional electricity prices fluctuate against natural gas, electric heaters operate with near 100% thermal efficiency. Steam boiler networks typically lose significant heat energy through uninsulated piping, leaking steam traps, and exhaust flues. Additionally, electric systems eliminate the extensive routine maintenance and specialized boiler operator requirements of traditional steam infrastructure.
