How Immersion Heaters Are Used in Process Heating Applications

Process manufacturing relies heavily on exact thermal conditions to keep operations running smoothly. Even a slight drop in fluid temperature can easily disrupt entire production lines. Plant managers need a reliable thermal transfer method to maintain optimal system flow. In process manufacturing, inaccurate temperature control or inefficient heat transfer leads to fluid degradation, increased energy costs, and catastrophic equipment failure. Direct-contact heating provides near-100% thermal efficiency, but specifying the wrong equipment results in rapid sheath corrosion or fluid coking. This guide breaks down how an industrial immersion heater functions within complex process systems. We will explore how to evaluate configurations based on precise fluid dynamics. You will also learn the exact criteria engineers must use to mitigate operational risks during vendor selection.

Key Takeaways

• Efficiency via Direct Contact: Immersion heating eliminates the ambient heat loss associated with indirect heating methods by transferring electrical energy directly into the fluid.

• Application Dictates Configuration: Choosing between flanged, screw plug, or circulation designs depends strictly on system pressure, tank volume, and maintenance access.

• Material and Density Rule Lifespan: Heater longevity is determined by matching the sheath material to the fluid’s corrosiveness and aligning watt density (W/in²) with the fluid's specific heat and flow rate.

• Risk Mitigation is Mandatory: Scaling, coking, and overheating are the primary failure modes; robust temperature sensors and safety shutoffs are non-negotiable for system compliance.

The Role of the Immersion Heater in Industrial Process Heating

Direct vs. Indirect Heating

Thermal transfer methods dictate how much energy actually reaches your process medium. Indirect methods include suction heaters or ambient wrapping. They heat the exterior of a vessel or pump components first. This external approach loses substantial heat to the surrounding environment. In contrast, an immersion heater sits directly inside the fluid. It provides up to 98% thermal transfer efficiency. Direct contact eliminates ambient heat loss. It also drastically reduces startup times. Your system consumes less operational energy overall.

Critical Process Applications

Direct heating elements serve multiple heavy industries. They handle extreme environments and highly sensitive mixtures.

• Oil & Gas / Petrochemical: Heavy crude systems demand precise heat. Temperature drops cause crude to thicken into unpumpable sludge. Heaters maintain precise viscosity. They also prevent severe icing during natural gas depressurization.

• Chemical Manufacturing: Chemical processing involves sensitive exothermic or endothermic reactions. Volatile compounds degrade under uneven heat. Immersion units sustain exact thermal parameters. They protect batch integrity safely.

• Water & Wastewater: Municipal holding tanks risk freezing during harsh winters. Large-scale elements prevent freezing. They also facilitate rapid sanitation and pasteurization in high-volume treatment centers.

The ROI of Precision

Legacy steam-traced systems require extensive infrastructure. They need boilers, massive piping networks, and constant trap maintenance. Replacing these setups yields significant benefits. Programmable electrical elements reduce maintenance downtime substantially. They improve overall equipment effectiveness (OEE). Digital automation allows precise scheduling. Plants eliminate boiler startups and minimize mechanical wear. Operators gain precise control over their daily energy expenditures.

Core Configurations: Matching the Heater to the Process Architecture

Choosing a heater shape is not random. The physical configuration must align perfectly with your tank architecture. Below is a configuration summary chart to help you compare options at a glance.

1. Flanged Immersion Heaters

   Flanged units handle immense industrial workloads. They bolt directly onto a corresponding flange welded into the tank wall. Use cases include high-pressure systems and high-volume tanks like heavy industrial boilers or large chemical vats. They supply heavy-duty wattage, scaling up to 2500kW or more. However, standard flanged units require you to drain the entire tank before maintenance. You can bypass this limitation by housing the element inside a drywell.

2. Screw Plug Immersion Heaters

   Screw plug models thread directly into threaded openings. Use cases include smaller closed vessels, light industrial fluids, and tight physical footprints. They offer a highly cost-effective solution. Mechanics install them easily via standard NPT threads. Their primary drawback involves physical limitations. Small footprints restrict their total power output.

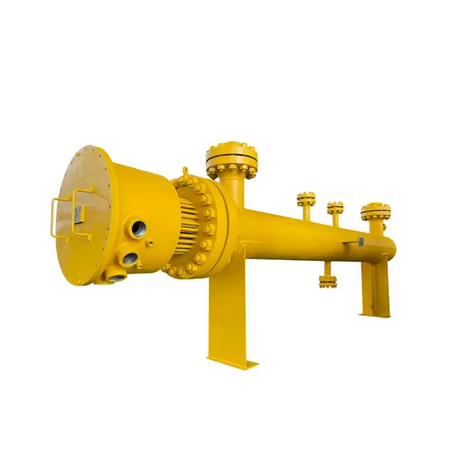

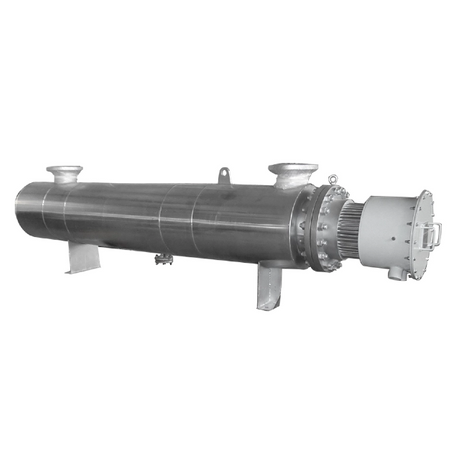

3. Circulation (Inline) Heaters

   Circulation units act as self-contained heating vessels. They heat flowing fluids within closed-loop systems. You will see them attached to pumped oil lines, water systems, or gas pipelines. They deliver uniform, continuous heat to moving mediums. This prevents localized fluid burning. To use them, you must integrate them directly into your existing pump infrastructure.

4. Over-the-Side (Side-Mount) Heaters

   Some tanks cannot undergo structural modifications. Over-the-side designs hang vertically over the vessel wall. Use cases include open vats or tanks where drilling through the wall is impossible or prohibited. They offer exceptional maintenance flexibility. Technicians can remove them without draining fluid. However, this design exposes the open tank to ambient air. This exposure potentially reduces overall thermal efficiency.

Technical Evaluation Dimensions for Specifying an Industrial Immersion Heater

Watt Density (Power Density) Profiling

Wattage per Square Inch (WSI) represents your most critical specification. Watt density measures how much heat a specific area of the element emits. It dictates how the fluid reacts to the hot surface.

Outcome mapping directly relies on WSI. Clean water flows quickly and absorbs heat rapidly. It can absorb high watt densities safely without boiling off. Conversely, highly viscous fluids like molasses or heavy crude absorb heat slowly. They require a very low watt density. If you apply high WSI to heavy crude, the fluid burns directly onto the sheath. This localized burning causes coking. Coking ruins the fluid and destroys the element.

Sheath Material Selection (Corrosion vs. Temperature)

Matching the sheath material to the fluid chemistry prevents rapid equipment failure. Strong acids will dissolve standard steel in days. High temperatures will warp basic copper.

Thermal Control & Automation

Unregulated heat invites disaster. Modern systems rely heavily on integrated RTDs (Resistance Temperature Detectors) and specialized thermocouples. RTDs provide highly accurate, linear temperature readings. Thermocouples offer faster response times in extreme heat. Digital controllers process these signals constantly. They manage dangerous startup spikes gracefully. They adjust power output during steady-state operation to conserve energy. Controllers also handle heat loss compensation automatically when ambient temperatures drop.

Implementation Risks and Failure Mitigation

Mineral Scaling & Buildup

Water systems frequently suffer from hard mineral deposits. Calcium attaches to the hot metal sheath. Over time, these mineral deposits insulate the heating element. The internal resistance wire cannot release heat into the fluid. It runs much hotter than designed. This excess internal heat leads to premature element burnout.

Best Practices for Mitigation:

Establish strict, regular maintenance schedules. Use lower watt densities for hard water applications. Lower surface temperatures reduce the rate of calcium crystallization.

Fluid Degradation (Coking)

Localized overheating triggers severe chemical reactions. The fluid permanently alters its chemistry. Heavy oils turn into solid carbon crusts on the element. This coking process ruins expensive batches of process fluid. It also creates a permanent thermal barrier on the sheath.

Common Mistakes:

Engineers often specify high-wattage elements to speed up heating times. Mitigation requires correct flow rates in circulation heaters. Strict thermostat controls must limit maximum sheath temperatures.

Dead Zones & Sensor Placement

Tank fluid dynamics dictate sensor locations. Fluid does not heat perfectly evenly. If you place the temperature sensor too close to the element, it reads artificially high heat. The system causes short-cycling. It turns off before the entire tank reaches the target temperature. If you place it too far away in a thermal dead zone, it reads falsely low temperatures. It commands the element to run continuously. This risks catastrophic system overheating.

Safety & Compliance

Regulatory compliance protects plant personnel. Terminal enclosures must match the operating environment exactly. NEMA 4 enclosures block heavy moisture and splashing water. NEMA 7 enclosures provide explosion-proof containment for volatile gas environments. Mandatory high-limit safety cutoffs are non-negotiable. They physically severe power to the unit if primary controllers fail. This prevents fires and structural vessel breaches.

Shortlisting Suppliers: A Procurement Framework

Custom Engineering vs. Off-the-Shelf

You must decide between standard products and engineered solutions. Standardized screw plugs work perfectly for small water tanks or simple oil reservoirs. They ship quickly and install easily. However, complex chemical processes require highly engineered flanged units. Viscous fluids often demand custom baffle arrangements. Baffles force fluid to weave across the elements, maximizing heat transfer. High-stakes applications necessitate custom engineering.

Vendor Vetting Criteria

Evaluating an equipment partner requires specific technical questions. Do not accept vague marketing promises. Use these questions to vet prospective suppliers:

• Do they offer fluid-specific watt density modeling for your exact medium?

• Can they provide exact sheath material compatibility charts detailing resistance to your specific chemical mixture?

• What are their lead times for replacement elements?

• Do they offer drywell or bayonet designs? These designs allow technicians to perform element swapping without draining the entire tank.

Conclusion

An industrial immersion heater is not a generic, easily swappable commodity. It operates as a highly specialized thermal instrument. System success requires balancing watt density, sheath material, and physical configuration against the specific realities of your process fluid. Misjudging fluid viscosity or chemical corrosiveness guarantees rapid equipment failure and compromised production.

Take immediate action to safeguard your thermal systems. We encourage you to audit your current process heating failure rates today. Track exactly how often your elements burn out or scale over. Consult with a specialized thermal engineering specialist. They will help you calculate the exact wattage and material requirements needed for your next critical upgrade.

FAQ

Q: Can an immersion heater run continuously?

A: Yes, but strictly through automated thermostatic cycling. Running an element continuously without a controller to cycle power will result in excessive energy waste and inevitable fluid/element destruction.

Q: How do you calculate the required wattage for an industrial tank?

A: Wattage calculations require three variables: the energy needed to reach the target temperature within a specific timeframe (Startup), the energy to maintain it (Operation), and the compensation for ambient heat escaping the vessel (Heat Loss).

Q: What is the difference between an immersion heater and a suction heater?

A: An immersion heater directly heats the entire static volume of fluid inside a tank. A suction heater isolates and heats only the specific volume of fluid being actively pumped out of the tank, which is often more efficient for massive bulk storage where heating the entire tank is unnecessary.

Q: Can heater elements be replaced without draining the tank?

A: Yes, if the system is designed with a drywell (or bayonet) configuration. The heating element is housed inside a secondary protective tube welded to the tank, allowing the core element to be extracted while the tank remains full.
