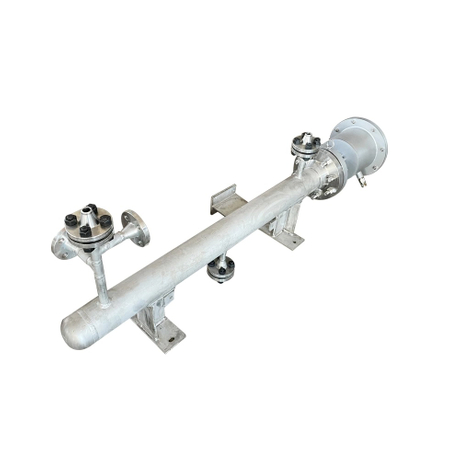

Why Are Flanged Heaters So Efficient?

B2B marketing materials often state electric heating is “100% efficient.” For industrial facility managers and process engineers, this oversimplified claim demands strict scrutiny. You know physical limits exist in any facility. While resistance heating does convert all electrical energy into heat, true system efficiency relies on something much deeper. It depends on how effectively you transfer, maintain, and control that heat without degradation over time. If you lose thermal energy to scale buildup or poor system design, your operational efficiency inevitably plummets.

This guide breaks down the engineering principles and control integrations making a flanged heater highly efficient in real-world industrial applications. We will strip away the marketing fluff. Instead, we focus on thermodynamic reality, precision control mechanisms, and smart procurement logic. You will learn exactly how to maximize point-of-use heat transfer, reduce unexpected downtime, and extend your critical equipment lifespan.

Key Takeaways

• Direct-to-Medium Transfer: Immersing the heating element directly in the fluid eliminates the ambient and exhaust heat losses inherent in gas-fired systems.

• Engineered Heat Distribution: Optimized watt densities and U-bend geometries promote natural convection, minimizing localized boiling and efficiency-killing scale buildup.

• Smart Power Modulation: Integration with PID controllers and RTD sensors prevents energy waste from temperature overshooting.

• Value Retention (TCO): Standardized ANSI interfaces and thermal cut-off mechanisms reduce installation downtime and protect capital assets from catastrophic failure.

The Physics of Direct Immersion Heating

Direct immersion heating operates on a brilliantly simple physical premise. You place the heat source directly inside the medium you want to heat. Unlike indirect or radiant systems, thermal energy passes directly into the liquid or gas. There is no physical barrier scattering the thermal output. The boundary layer of the fluid makes immediate contact with the hot metal sheath. This direct contact ensures absolute maximum thermal transfer.

Traditional gas burners tell a very different story. They require complex flues and extensive venting networks to operate safely. These legacy systems expel massive amounts of heat into the surrounding environment as toxic byproducts escape. You pay for thermal energy simply floating out of your roof. Electric immersion systems do not need exhaust pipes. They generate zero localized emissions. Therefore, you do not lose any expensive heat to ambient air or structural venting.

The physical baseline remains absolute in electrical engineering. One watt of electricity creates exactly 3.412 BTUs of heat. You cannot change this thermodynamic law. The true efficiency of immersion technology lies purely in absorption. Good engineering ensures the target medium absorbs 100% of those BTUs. We measure true performance by how effectively the fluid captures every unit of generated heat. If the heat transfers instantly, your process times shrink considerably.

Internal Engineering: Maximizing Heat Transfer and Longevity

The external metallic structure of a heating element hides complex internal engineering. Inside the tubular elements, manufacturers tightly pack high-purity Magnesium Oxide (MgO) powder. This compacted MgO plays a fascinating dual role in thermal dynamics. It acts as a robust electrical insulator. It prevents live electrical current from reaching the outer metal sheath, keeping your operators safe. At the same time, it provides maximum thermal conductivity. This rapid internal heat transfer keeps the inner resistance wire temperatures much lower. It prevents internal burnout and drastically extends the operational life of the unit.

Element geometry also drives thermodynamic efficiency. Engineers design specific U-shaped or W-shaped element configurations for a clear reason. These distinct shapes stimulate natural convection currents inside your storage tank. As the fluid near the hot elements warms up, its density drops, and it naturally rises. Cooler, denser fluid drops down to replace it. This continuous thermal cycle distributes heat uniformly across the entire fluid volume. You achieve excellent thermal mixing without relying heavily on secondary mechanical agitation.

Specifying the correct watt density remains your most critical engineering choice. Watt density measures power output in watts per square inch of sheath surface area. If you force a high watt density into a thick, viscous fluid, you trigger localized boiling. Industry experts call this phenomenon "film boiling." It leads directly to rapid mineral scale accumulation. Scale acts as a thick, unwanted insulator on the sheath. It blocks heat transfer into the fluid and forces the internal wire to run dangerously hot. Preventing scale buildup ensures you maintain long-term energy efficiency.

Common Factors Influencing Optimal Watt Density

• Fluid Viscosity: Thicker fluids, like heavy oils or syrups, require much lower watt densities (typically 10-20 W/sq.in) to prevent severe scorching.

• Operating Temperature: High-temperature processes demand careful surface load management to protect the metallic sheath from rapid oxidation.

• Flow Rate Dynamics: Fast-moving fluids scrub heat away from the elements rapidly. This allows you to safely use significantly higher watt densities.

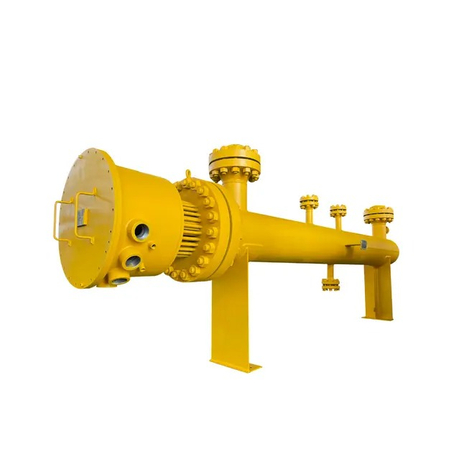

Precision Control: Eliminating Waste in an Industrial Flanged Electric Heater

Standard on/off thermostats work perfectly fine for basic residential needs. However, they are woefully insufficient for an industrial flanged electric heater managing highly sensitive chemical processes. Simple thermostats wait until the fluid temperature drops well below a setpoint to turn on fully. Then, they shut off completely once they hit the target temperature. This binary action creates massive thermal lag. The residual heat trapped in the elements continues warming the fluid even after the power stops. This causes severe temperature overshoot. Overshooting wastes massive amounts of expensive electrical energy.

PID controllers completely eliminate this chaotic energy waste. PID stands for Proportional-Integral-Derivative. This advanced logic continuously calculates exact heating needs in real-time. It adjusts power output dynamically to maintain exact setpoints. The proportional band reduces power as you approach the target. The integral function corrects past errors, and the derivative function predicts future drops. Instead of running at full load continuously, the PID controller gently pulses the solid-state relays. It uses only the precise micro-bursts of energy necessary to hold the temperature perfectly steady.

This smart modulation relies heavily on high-quality, fast-acting sensors. Industrial setups typically use Thermocouples or highly accurate Resistance Temperature Detectors (RTDs). Engineers place these sensors securely inside protective thermowells to shield them from corrosion. For massive industrial tanks, we often implement a strategy called "zoned heating." Instead of activating all heating elements simultaneously, specific flanges activate independently. They maintain precise temperature zones based on local fluid levels. This intelligent strategy prevents you from heating the entire vessel unnecessarily when it is only half full.

Control System Efficiency Comparison

Operational Continuity: Efficiency Beyond the Utility Bill

True system efficiency goes far beyond simply measuring hourly power draw. System standardization significantly accelerates your installation timelines and retrofitting speed. Manufacturers build these robust heating units using standardized ANSI flanges, such as the common 150 lb or 300 lb pressure classes. This universal standardization makes it highly efficient to upgrade existing tank setups. You can rapidly swap out legacy gas systems without undertaking complex structural re-engineering. The bolt-hole patterns and pressure ratings match perfectly with industry-standard pipe flanges found worldwide.

Protecting your physical assets ensures long-term operational efficiency. High-limit temperature sensors and rapid thermal cut-offs act as your primary defense mechanisms against disaster. They instantly detect dangerous operational anomalies, such as dry-firing. If the tank fluid level drops unexpectedly due to a leak, exposed heating elements will overheat in a matter of seconds. Thermal cut-offs immediately sever electrical power. This rapid action protects the sensitive tank lining from catastrophic thermal failure. It also prevents the internal heating wires from melting down completely.

Routine maintenance efficiency also plays a massive role in facility productivity. Advanced industrial units feature specialized removable core or tube-bundle designs. These innovative mechanical configurations allow maintenance teams to slide out the internal heating elements effortlessly. Crucially, you do not need to drain thousands of gallons of hazardous fluid first. The sealed flanged housing remains intact on the tank. This smart engineering drastically reduces operational downtime during mandatory inspections. It keeps your plant running smoothly, cleanly, and consistently.

Procurement Checklist: Specifying Your System for Peak Performance

Selecting the wrong equipment degrades system efficiency almost immediately. You must carefully match your sheath material to the exact chemical composition of the process fluid. An incorrect metal will corrode rapidly, leading to electrical shorts and total unit failure.

Sheath Material Mapping Framework

1. Standard Stainless Steel (304/316): Excellent for basic clean water, mildly corrosive process liquids, and strict food-grade sanitary applications.

2. Incoloy Alloys: Ideal for extremely high temperatures and mild acid solutions. Incoloy resists scaling and oxidation beautifully in tough chemical environments.

3. Titanium: The ultimate structural choice for highly corrosive chemicals, including aggressive saltwater matrices or concentrated acidic baths.

Phase and voltage alignment directly dictates your electrical system efficiency. Most heavy-duty industrial setups standardize on 3-phase power grids. A 3-phase electrical system delivers significantly more stable power than single-phase alternatives. It operates using smaller wiring requirements. This configuration delivers vastly better operational efficiency for high-wattage process needs. It balances the electrical load perfectly across three legs, typically in a Delta or Wye configuration, reducing overall amperage draw. This keeps your critical electrical panels much cooler and safer.

Finally, you should always demand established industry compliance markers. These stringent markers serve as your absolute baseline trustworthiness indicators. Ensure your chosen manufacturer provides ASME-certified pressure vessels. Verify they utilize strict ANSI-rated flanges built for high-pressure handling. Confirm the complete unit meets EPA-compliant zero-emission configurations. These rigorous certifications guarantee the equipment will perform efficiently, safely, and predictably under extreme industrial stress.

Conclusion

The efficiency of a flanged heater goes far beyond a simple thermodynamic property. It represents the successful convergence of direct heat application, precision smart control, and robust physical protection. When you combine direct fluid immersion with advanced PID logic, you eliminate massive energy waste entirely. You achieve near-perfect thermal absorption while protecting your assets from premature failure.

Take immediate action to optimize your facility operations today. First, audit your current process heating cycle to identify thermal lag or scaling issues. Next, calculate your exact required watt density based on your specific fluid viscosity and flow rate. Finally, consult directly with an expert manufacturer to define your exact PID control requirements. Taking these precise steps ensures your next installation runs at absolute peak performance.

FAQ

Q: If resistance heating is 100% efficient, why do people say heat pumps are 300% efficient?

A: Resistance heating creates heat directly from electrical energy, capping perfectly at 100% physical conversion. Heat pumps, however, do not create heat. They move existing ambient heat from one place to another. This moving process requires very little electricity, allowing them to deliver up to 300% more heat energy than they consume. However, heat pumps cannot achieve the extreme temperatures required for industrial process heating.

Q: How does electric flanged heating compare to gas when considering the entire power grid?

A: Electric heaters convert 100% of received electricity into heat at the point of use. Grid power generation and transmission do involve earlier energy losses. However, at the facility level, electric immersion heating offers vastly superior process control. It produces zero localized emissions, easily meeting strict EPA standards, and completely eliminates the massive exhaust heat losses inherent in gas boiler systems.

Q: Does a higher wattage mean a more efficient heater?

A: No. Higher wattage simply provides a larger total heat capacity. True operational efficiency comes from matching the exact watt density to your specific fluid. You must distribute the total heat output over the correct surface area. This precise matching ensures the fluid absorbs the heat rapidly without causing dangerous scorching, localized boiling, or severe scale accumulation.
