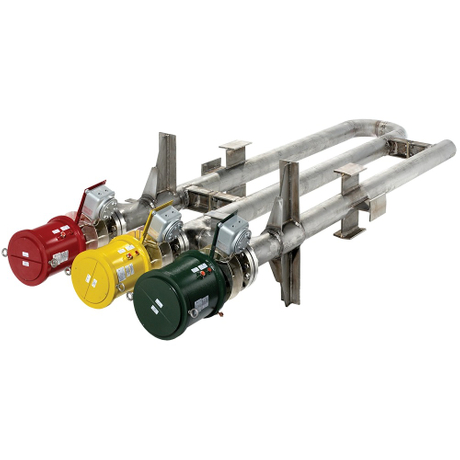

Modern industrial facilities face a constant challenge. They must achieve precise, continuous temperature control within pressurized fluid systems. Expanding the physical plant footprint is rarely a viable option. At the same time, risking fluid degradation ruins product quality. We rely on an elegant engineering solution to solve this puzzle. An industrial inline heating system meets these strict demands perfectly. You might know it as a circulation heater. This device features a flanged or screw-plug immersion heater completely enclosed inside a dedicated pressure vessel. It safely heats flowing liquids or gases while delivering near 100% electrical efficiency. Selecting the correct system involves far more than generic heat output. You must evaluate specific continuous-process parameters closely. You have to match precise flow regimes, allowable watt densities, and system pressure requirements directly to your unique application. Read on to discover how this technology optimizes operational stability.
Process Shift: Moves operations from inefficient batch heating (tanks) to highly controlled, continuous inline heating.
Energy Conversion: Delivers near-100% electrical-to-heat conversion, heavily outperforming the ~30% thermal efficiency of traditional fossil fuel systems.
Risk Mitigation: Proper watt density specification and flow regime design prevent costly fluid carbonization and equipment burnout.
Compliance Dependency: High-capacity units often fall under pressure vessel regulations (e.g., ASME), requiring specific safety and registration protocols.
Traditional immersion heaters restrict operations to static environments. Engineers rely on them primarily for batch tank heating. Batch processing consumes massive amounts of floor space. Facilities must house giant holding tanks simply to heat materials. Conversely, inline heaters process fluids actively in transit. This shift allows facilities to run continuous manufacturing cycles. You significantly reduce the physical footprint of the entire heating system. Plant managers reclaim valuable floor space for other critical operations.
Cost-to-efficiency ratios strongly favor electrical inline upgrades. We must contrast the energy conversion of electrical cathode heating against fossil fuels. Electrical systems deliver nearly 100% energy conversion. Every kilowatt drawn translates directly into thermal energy inside the fluid stream. Fossil-fuel combustion systems suffer inherently from massive thermal loss. They rarely exceed 30% thermal efficiency due to exhaust venting and radiant heat escaping the burners. Furthermore, upgrading reduces your maintenance downtime drastically. Complex heat exchangers utilize many fragile moving parts. Electrical inline vessels operate statically. They eliminate mechanical wear entirely.
System footprint and physical integration provide further operational advantages. The highly compact, closed-loop design actively prevents heat loss into the ambient plant environment. Engineers enjoy extreme flexibility during system design. You can choose direct heating configurations. These include standard inline or side-arm setups where heating elements directly contact the process fluid. Alternatively, you can design indirect heating setups. Indirect configurations protect highly sensitive or corrosive materials from touching the heat source directly.
Understanding how an industrial circulation heater functions requires diving deeply into fluid dynamics. We must evaluate heat transfer mechanics at a molecular level.
Thermodynamics dictate overall system efficiency. Natural convection combined with forced convection determines how quickly process fluids absorb thermal energy. Natural convection happens naturally as heated fluid rises. Forced convection occurs when mechanical pumps push the fluid through the vessel. Our primary engineering goal remains straightforward. We must induce a "turbulent" flow regime inside the pressure vessel. We achieve this via calculated internal geometric design. Laminar flow creates a stagnant boundary layer. This sluggish layer traps extreme heat directly against the heating element. Turbulent flow disrupts this dangerous boundary layer entirely. This disruption maximizes surface-area contact between the fluid stream and the hot sheath. Consequently, you can utilize much higher allowable watt densities safely without ever overheating the equipment.
Process engineers define heat transfer success through very specific thermal criteria. Good heat distribution typically requires significant thermal mass. This thermal mass should cover at least 50% of the enclosed vessel space. Materials possessing high dielectric strength remain absolutely critical here. Inside the heating element, magnesium oxide powder acts as the primary insulator. High dielectric strength ensures optimal electrical charge flow. It prevents dangerous electrical arcing. Simultaneously, it maximizes pure thermal transfer outward into the flowing fluid stream.
Mismatched engineering specifications introduce severe operational risks. You must never overestimate the allowable sheath temperature. You must base all calculations strictly on the fluid’s specific heat, thermal conductivity, and absolute viscosity. Ignoring these three variables leads directly to disaster. The fluid touching the element undergoes immediate carbonization. Industry professionals often call this chemical breakdown "coking." This degradation ruins the entire production batch immediately. Eventually, thick carbon buildup physically insulates the heating elements. This insulation traps internal heat, triggering catastrophic element burnout rapidly.
Procurement and process engineers need a clear, verifiable framework. They must evaluate several technical parameters meticulously before finalizing any equipment requisition.
Determining Safe Watt Densities:
Watt density dictates how much thermal energy emits from every square inch of the element surface. Specifying the wrong density destroys equipment.
Water and Aqueous Solutions: These fast-absorbing fluids exhibit high thermal tolerance. They typically allow 50–75 W/in² for rapid heat absorption.
Oils, Chemicals, and Dairy: These viscous or chemically sensitive fluids possess very low thermal tolerance. You must avoid localized scaling and scorching at all costs. They strictly require lower heat densities. You should limit these applications to 10–25 W/in².
Fluid Type | Recommended Watt Density Range | Primary Risk if Exceeded |
|---|---|---|
Water & Clean Aqueous Solutions | 50 – 75 W/in² | Mineral scaling on element sheaths |
Light Oils & Heat Transfer Fluids | 20 – 30 W/in² | Fluid degradation and viscosity loss |
Heavy Oils, Dairy & Harsh Chemicals | 10 – 25 W/in² | Severe carbonization and element burnout |
Pressure and Flange Standards:
You must evaluate your system operating pressures rigorously. Always compare anticipated maximum pressures against standard ANSI flange ratings. Common industrial ratings include 150, 300, 600, and scale up to 2500 psi for extreme applications. For lower-pressure systems, you can utilize NPT (National Pipe Thread) screw-plug fittings. Standard sizes range from 1.25" NPT up to massive 14" diameter assemblies. These threaded options provide excellent gasket-free sealing. They simplify maintenance routines significantly.
Control Panel Integration:
Industrial manufacturing processes demand absolute precision. Basic contactors switch power on and off clumsily. Instead, you must specify advanced SCR (Silicon Controlled Rectifier) temperature controllers. Pair these SCR units alongside highly accurate digital RTDs (Resistance Temperature Detectors). This integration automates continuous, minute parameter adjustments. It prevents dangerous temperature overshoots. Ultimately, an SCR setup optimizes your overall electrical energy draw smoothly.
Installing these thermal units exposes several physical operational realities. You must make necessary physical accommodations to prevent premature system failure.
Strict Rules for Heater Orientation:
Mounting orientation dictates internal fluid flow paths. It also determines safe heat distribution. Improper installation traps dangerous air or gas pockets. These pockets expose heating elements to dry-firing conditions.

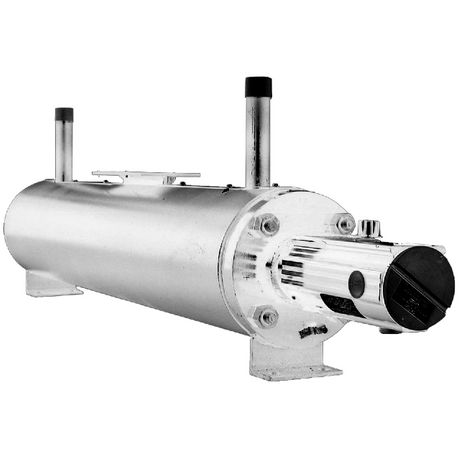

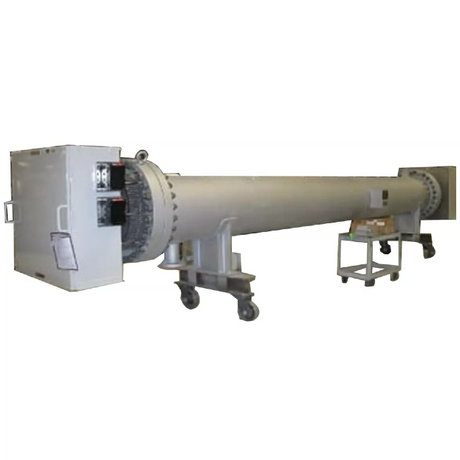

Liquid Applications: Horizontal mounting strictly requires the inlet and outlet nozzles facing upward. This bleeds trapped air naturally. If you choose vertical mounting, you must position the terminal box at the absolute top. The cold fluid inlet must remain at the bottom.
Gas and Air Applications: Horizontal mounting requires placing the inlet nozzle closest to the terminal box. Vertical mounting demands placing both the inlet and the terminal box entirely at the bottom. This forces cold gas to flow upward across the heated bundle.
Thermal Isolation for Electrical Enclosures:
Engineers must address conductive heat transfer proactively. Heat moves directly from the heated vessel flange straight into the electrical terminal box. High-temperature applications easily melt internal wiring insulation. You must specify the use of thermal isolation standoffs. These simple physical gaps prevent severe wiring degradation. Sometimes engineers integrate cooling fins between the flange and the box. These features ensure continuous electrical safety during peak operational cycles.
Preventative Maintenance Requirements:
Routine care extends equipment life exponentially. Process systems rarely operate in perfectly clean conditions.
Plan for routine internal decalcification and physical vessel flushing. You must remove internal deposits regularly. These mineral deposits act as powerful thermal insulators, destroying efficiency and causing internal overheating.
Mandate the scheduled calibration of all safety components. High-limit thermocouples and internal pressure sensors must read accurately. Untested sensors fail silently and lead to catastrophic vessel rupture.
Legal and compliance considerations heavily influence your final vendor selection. You cannot treat these industrial devices like standard commercial heating appliances. They handle immense pressures and dangerous temperatures.
Pressure Vessel Classification Boundaries:
Classification boundaries depend entirely on your local legal jurisdiction. Regulatory bodies evaluate the specific fluid heated. They check the total KW rating. They measure the maximum operating pressure. Consequently, local laws may classify your newly installed system legally as a traditional boiler or a formal pressure vessel. You must verify these boundaries before installation to avoid massive regulatory fines.
Required Safety Cutoffs:
Never compromise on redundant safety features. Ensure your engineering specification includes several mandatory safety layers. You need dedicated high-limit safety controllers to monitor sheath temperatures constantly. You must install reliable emergency shut-off valves across the main fluid loop. Finally, include independent thermal cut-offs. Wire these cut-offs directly into the main power contactor to kill power instantly during thermal runaway.
Certifications to Mandate:
Shortlist only highly qualified fabrication vendors. They must prove capable of providing formal ASME Section VIII stamping. Demand National Board registration for all high-pressure vessels installed in North America. If your facility operates in hazardous or explosive environments, demand specialized compliance certificates. Look specifically for ATEX or IECEx ratings. These ratings guarantee the terminal enclosures will not ignite airborne combustible dust or gases.
Upgrading to an advanced thermal system remains highly justified for modern plants. Facilities desperately need continuous inline processing, precise temperature control, and superior energy efficiency. Moving away from batch heating reclaims floor space and accelerates production timelines. You must prioritize custom fluid dynamics during the early design phase. Always balance the exact equipment watt density against your specific fluid viscosity. This engineering discipline prevents disastrous chemical breakdowns and expensive element failures.
Take action before finalizing any procurement specifications. We strongly recommend consulting directly alongside a specialized thermal process engineer. Ask them to run a comprehensive CAD-assisted heat transfer iteration. They should base this calculation entirely on your exact mass flow rates and target temperature rises. This final validation ensures your new system performs flawlessly for decades.
A: Immersion heaters are installed directly into static tanks for batch heating; circulation heaters are closed-vessel inline units designed to heat fluids as they are pumped through a system.
A: It depends entirely on the fluid. Fast-absorbing fluids like water can handle 50-75 W/in², whereas viscous oils or sensitive chemicals require 10-25 W/in² to prevent carbonization.
A: Yes, critically. Orientation dictates fluid flow and heat distribution. Improper orientation traps air or gas pockets, leading to exposed heating elements, localized overheating, and rapid failure.
